Product Description

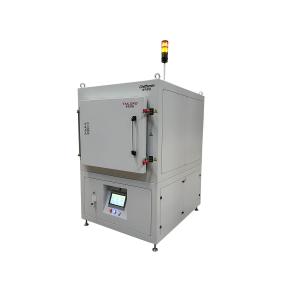

Chitherm Hrf216-07 Hot Air Rubber Removal Furnace with Effective Chamber Dimensions 600*600*600mm
Applications
Mainly used for binder burning out (BBO) process of electronic components and ceramic substrates.
Technical Specifications
- Rated Temperature: 600ºC
- Maximum Temperature: 650ºC
- Effective Dimensions: 600 × 600 × 600mm (W×H×D)
- Heating Method: Stainless Steel Heater
- Process Atmosphere: Air
- Temperature Control Stability: ±1ºC, with PID parameter self-tuning function
- Temperature Uniformity: better than ±5ºC (insulation 1 hour at 400ºC test)
- Thermocouple: Type K
- Temperature control points: 1
- Temperature measurement points: 1 point
- Process Steps: 4 × 16 steps
- Exhaust: One exhaust port on top
- Alarm System: Over temperature, thermocouple failure and other abnormal conditions will activate sound and light alarm protection
- Maximum Heating Power: 24kW
- Insulation Power: ≤ 12kW
- Surface Temperature Rise: ≤ 35ºC
- Weight: about 1000kg
- Furnace Dimensions: about 1300×1710×1800mm (W×H×D)
- Appearance Color: light gray
Facility Requirements
Environmental Conditions
Temperature 0 - 40ºC, humidity ≤ 80% RH, no corrosive gas, no strong airflow disturbance.
Process Air Conditions
Clean compressed air, pressure 0.2 - 0.4Mpa, gas consumption 3-7m3/h.
Ventilation System
Non-contact access to the user pumping system, pumping capacity greater than 10m3/h.
Ground Requirements
Level, no obvious vibration, bearing capacity >300Kg/m2.
Power Conditions
Capacity greater than 32kVA, 3 phases 5 lines, voltage 220/380V, frequency 50Hz (according to local situation). Live wire: yellow, green, red, neutral wire: blue, ground wire: yellow-green.
Installation Site
2000mm×3000mm×3000mm (W×H×D), installation area greater than 6m2.
