Industrial Hot Air Circulating Furnace with Vertical Place Style and Rated Temperature Rt 10-200 ordm

Model NO. : HRF535-02 Type

Range of Applications : Industrial

Type : Electric Holding Furnace

Usage : Ceramic Drying

Fuel : Electric

Atmosphere : Nitrogen

Effective Chamber Dimensions : 850*700*900mm(W*H*D)

Rated Temperature : Rt+10~200ºC

Heating Elements : Custom-Made Squirrel-Cage Heaters

Control Points : 1 Point

Transport Package : Wooden Packaging

Specification : 1250*1870*1076mm(W*H*D)

Trademark : Chitherm

Origin : China

HS Code : 8514101000

Supply Ability : 50 Sets/Year

Package Size : 1600.00cm * 1550.00cm * 2250.00cm

Package Gross Weight : 709.000kg

Customization : Available

Certification : ISO

Place Style : Vertical

Shipping Cost : Contact the supplier about freight and estimated delivery time.

: Support payments in USD

Secure payments : Every payment you make on Made-in-China.com is protected by the platform.

Refund policy : Claim a refund if your order doesn't ship, is missing, or arrives with product issues.

Contact Now

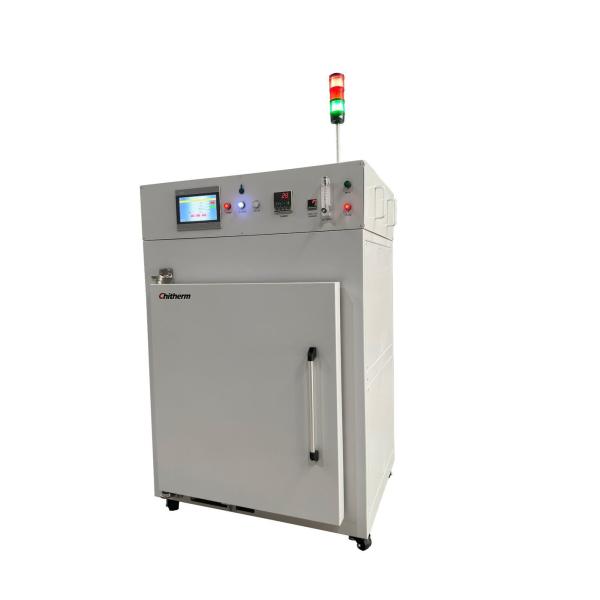

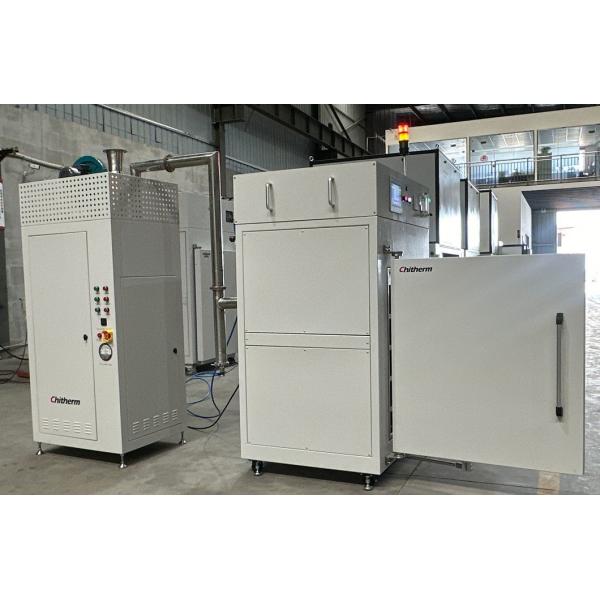

Industrial Hot Air Circulating Furnace with Vertical Place Style

HRF535-02 Type Electric Holding Furnace for Ceramic Drying

Key Specifications

Attribute	Value
Model NO.	HRF535-02 Type
Effective Chamber Dimensions	850×700×900mm (W×H×D)
Rated Temperature	RT+10~200°C
Max Temperature	300°C
Heating Elements	Custom-Made Squirrel-Cage Heaters
Process Atmosphere	Nitrogen
Temperature Control Stability	±1°C
Temperature Uniformity	±3°C (at 200°C)
Max Heating Power	10kW
Weight	Approx. 700kg
Certification	ISO

Product Overview

The HRF535-02 Hot Air Exhaust Resin Furnace is designed for drying, curing, and resin exhaust processes in semiconductor and electronic component manufacturing. Featuring stainless steel heating tubes, centrifugal fan air supply, and double-layer stainless steel construction with full-fiber insulation, this furnace delivers precise temperature control through an imported single-loop intelligent temperature controller.

Industrial Hot Air Circulating Furnace with Vertical Place Style and Rated Temperature Rt 10-200 ordm

Technical Specifications

Control Points: 1 point with PID parameter self-tuning
Thermocouple: Type K
Process Steps: 20 programmable steps
Exhaust System: Top-mounted exhaust port
Safety Features: Over-temperature and thermocouple failure alarms
Insulation Power: ≤ 5kW
Surface Temperature Rise: ≤ 35°C
Furnace Dimensions: 1400×1930×1080mm (W×H×D)
Appearance: Light gray finish

Standard Delivery Contents

Item	Note	Quantity
Dryer		1 PC
Certificates of Inspection	Dryer and major components	1 Set
Waste Gas Incinerator		1 PC
Technical Documents	Manual and component documentation	1 Set
Heating Elements	Customized Heater	1 Set
Thermocouple	WATLOW/THERMOWAY, Type K	1 PC
Temperature Controller		1 Set
Monitor	Touch screen	1 Set
SSR (Spare)		1 PC

Facility Requirements

Environment: 0-40°C, ≤80% RH, no corrosive gas
Process Air: 99.999% nitrogen, 0.2-0.4Mpa, 5-15m³/h
Ventilation: Non-contact access with >15m³/h capacity
Floor: Level, >300Kg/m² bearing capacity
Power: >14kVA, 3-phase 5-wire, 220/380V, 50Hz
Installation Space: 2500×2100×3000mm (W×H×D)

Additional Information

Customization: Available upon request

Shipping: Contact supplier for freight and delivery details

Payment: USD accepted, secure transactions guaranteed

Refund Policy: Available for unshipped, missing, or defective orders
