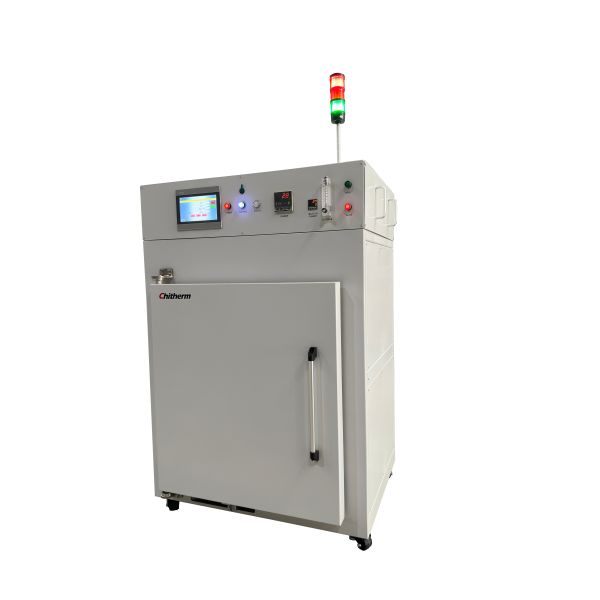

HRF535-02 Hot Air Box Furnace Industrial Electric Furnace Hot Air Box Furnace For Ceramic Drying

Brand Name : Chitherm

Model Number : HRF535-02 Type

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : L/C,T/T

Supply Ability : 50 Sets/Year

Delivery Time : 90 work days

Model NO. : HRF535-02 Type

Range of Applications : Industrial

Type : Electric Holding Furnace

Usage : Ceramic Drying

Fuel : Electric

Atmosphere : Nitrogen

Effective Chamber Dimensions : 850*700*900mm(W*H*D)

Rated Temperature : Rt+10~200ºC

Heating Elements : Custom-Made Squirrel-Cage Heaters

Control Points : 1 Point

Transport Package : Wooden Packaging

Specification : 1250*1870*1076mm(W*H*D)

Trademark : Chitherm

Origin : China

HS Code : 8514101000

Package Size : 1600.00cm * 1550.00cm * 2250.00cm

Package Gross Weight : 709.000kg

Customization : Available

Certification : ISO

Place Style : Vertical

Shipping Cost : Contact the supplier about freight and estimated delivery time.

  : Support payments in USD

Secure payments : Every payment you make on Made-in-China.com is protected by the platform.

Refund policy : Claim a refund if your order doesn't ship, is missing, or arrives with product issues.

Contact Now

HRF535-02 Hot Air Box Furnace Industrial Electric Furnace
Product Overview

Advanced industrial electric furnace designed for ceramic drying applications with precise temperature control and nitrogen atmosphere capability.

Key Specifications
Model NO. HRF535-02 Type
Application Industrial Ceramic Drying
Effective Chamber Dimensions 850×700×900mm (W×H×D)
Rated Temperature RT+10~200°C
Heating Elements Custom-Made Squirrel-Cage Heaters
Atmosphere Nitrogen
Certification ISO
Core Features
  • Precision Temperature Control: ±1°C stability, ±3°C uniformity at 150°C
  • Programmable Operation: 20 groups × 20 segments
  • Multi-layer Design: 4 layers of SUS304 stainless steel trays
  • Forced Air Circulation: Squirrel-cage heater system
  • Safety Protection: Overtemperature, thermocouple break, and motor overload protection
Technical Specifications
Temperature Control
  • Operating Range: RT+10~200°C (Max. 200°C)
  • Precision Control: ±1°C (Stability) / ±3°C (Uniformity @150°C Empty Chamber)
  • Program Capability: 20 Groups × 20 Segments
Structural Design
  • Effective Volume: 0.535m³ (850×700×900mm)
  • Multi-layer Design: 4 Layers of SUS304 Stainless Steel Trays
  • Hot Air System: Squirrel-cage Heater + Forced Circulation
Gas Control System
  • Dual Gas Source Support: Compressed Air / Nitrogen (Optional)
  • Flow Adjustment: 24-240 LPM (Glass Rotameter)
  • Exhaust Treatment: Requires >15m³/h Extraction System
HRF535-02 Hot Air Box Furnace Industrial Electric Furnace Hot Air Box Furnace For Ceramic Drying
HRF535-02 Hot Air Box Furnace Industrial Electric Furnace Hot Air Box Furnace For Ceramic Drying
Installation Requirements
  • Power: 14kVA Three-phase (380-415V±10%)
  • Gas Source: Clean Compressed Air with Dew Point ≤-20°C
  • Floor Load: ≥500kg/m²
  • Space: Minimum 3㎡ area with 3000mm vertical clearance
Application Guidelines
  • Ideal for step heating processes in electronic ceramics
  • Sensitive material debinding possible in nitrogen protection mode
  • No-load power consumption ≤5kW
  • Recommended full-load operation time <8h>
HRF535-02 Hot Air Box Furnace Industrial Electric Furnace Hot Air Box Furnace For Ceramic Drying
HRF535-02 Hot Air Box Furnace Industrial Electric Furnace Hot Air Box Furnace For Ceramic Drying
HRF535-02 Hot Air Box Furnace Industrial Electric Furnace Hot Air Box Furnace For Ceramic Drying
HRF535-02 Hot Air Box Furnace Industrial Electric Furnace Hot Air Box Furnace For Ceramic Drying
Delivery Contents
Item Note QTY
Basic Compositions Dryer 1 PC
Certificates of Inspection Dryer and major purchased components 1 Set
Waste Gas Incinerator 1 PC
Technical Documents Manual instructions, technical documents of major purchased components 1 Set
Key Parts
Heating Elements Customized Heater 1 Set
Thermocouple WATLOW/THERMOWAY, Type K 1 PC
Temperature Controller 1 Set
Monitor Touch screen 1 Set
Spares
SSR 1 PC
HRF535-02 Hot Air Box Furnace Industrial Electric Furnace Hot Air Box Furnace For Ceramic Drying
Ordering Information
  • Supply Ability: 50 Sets/Year
  • Customization: Available
  • Shipping: Contact supplier for freight and delivery time
  • Payment: USD payments accepted
All payments are protected by Made-in-China.com platform. Refund available for orders that don't ship, are missing, or arrive with product issues.
