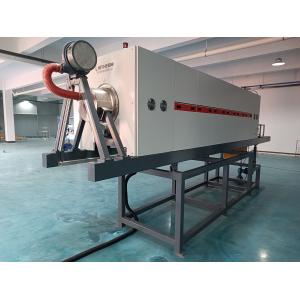

900C Rotary Quartz Tube Furnace High Temperature Tubular Furnace
Product Specifications
| Attribute | Value |
| Range of Applications | Industrial |
| Type | Electric Holding Furnace |
| Usage | Ceramic Sintering |
| Fuel | Electric |
| Atmosphere | Nitrogen/Air |
| Effective Chamber Dimensions | Inner Diameter Φ300*4230 |
| Transport Package | Wooden Packaging |
| Specification | 1215*2500*6200mm(W*H*L) |
| Trademark | Chitherm |
| Origin | China |
| HS Code | 8514101000 |
| Supply Ability | 50 Sets/Year |
| Customization | Available |
| Certification | ISO |
| Place Style | Vertical |
Product Overview
The RTF3042-0610 rotary furnace is designed for sintering electronic products at temperatures up to 900°C, with applications in electronics, chemical engineering, machinery, and scientific research. This advanced furnace features infrared technology and premium furnace lining materials for enhanced thermal efficiency.
Key Features
- Advanced temperature control technology ensures ±1°C precision
- Optimized furnace body design guarantees temperature uniformity
- Large-diameter quartz furnace tube maintains product cleanliness
- Six-zone heating system with independent temperature control
- Far-infrared FEC heaters for efficient heating
- Comprehensive alarm protection system
Technical Specifications
Maximum Temperature: 1000°C
Operating Temperature: RT~900°C
Furnace Tube Size: Φ300mm×4230mm
Heating Zone Length: 2770mm
Temperature Zones: 6 zones with K-type thermocouples
Control Method: Shimaden temperature controllers (Japan)
Power Requirements: 380V±10%, 50Hz, 3-phase 5-wire
Dimensions: 6200×1215×2475mm (L×W×H)
Weight: Approximately 2100Kg
System Components
| Item | Note | Quantity |
| Basic Components | Furnace | 1 SET |
| Inspection Certificate | Certificate of major outsourced components | 1 SET |
| Technical Documents | Instructions, technical documents | 1 SET |
| Key Components | Heating Element | 1 SET |
| Touch Screen | | 1 SET |
| Temperature Controller | | 1 SET |
| Quartz Tube | SiO2 | 1 PC |
| Reducer Motor | | 1 SET |
| Spare Parts | SSR | 1 PC |
Operational Requirements
Floor Load Capacity: 300Kg/m²
Environment: Indoor with minimal vibration and air disturbance
Temperature Range: 0~40°C
Humidity: 10%~85%RH
Ventilation: Well-ventilated area with ambient temperature ≤50°C
