Custom Gas Fired Atmosphere High Temperature Box Furnace For Steel Molding Heat Treatment

Name: Custom Gas Fired Atmosphere High Temperature Box Furnace For Steel Molding Heat Treatment
Brand: Chitherm
Price: 1 USD

China Custom Gas Fired Atmosphere High Temperature Box Furnace For Steel Molding Heat Treatment wholesale

Model Number : MBF22-11N

Range of Applications : Industrial

Type : Electric Holding Furnace

Usage : Steel Molding

Fuel : Electric

Atmosphere : Air

Effective Chamber Dimensions : 2000×2000×3000 (D×w×h)

Rated Temperature : 1000ºC

Maximum Temperature : 1100°c

Transport Package : Wooden Packaging

Specification : 1520× 1520× 3000mm(W*H*D)

Trademark : Chitherm

Origin : China

HS Code : 8514101000

Supply Ability : Customized

Customization : Available

Certification : ISO

Place Style : Vertical

Place of Origin : China

Brand Name : Chitherm

MOQ : 1

Price : Negotiable

Packaging Details : Customized

Delivery Time : Customized

Payment Terms : Customized

Contact Now

Custom Gas Fired Atmosphere High Temperature Box Furnace For Steel Molding Heat Treatment

Product Specifications

Range of Applications	Industrial
Type	Electric Holding Furnace
Usage	Steel Molding
Fuel	Electric
Atmosphere	Air
Effective Chamber Dimensions	2000×2000×3000 (D×W×H)
Rated Temperature	1000°C
Maximum Temperature	1100°C
Transport Package	Wooden Packaging
Specification	1520×1520×3000mm (W×H×D)
Trademark	Chitherm
Origin	China
HS Code	8514101000
Supply Ability	50 Sets/Year
Customization	Available
Certification	ISO
Place Style	Vertical

Product Description

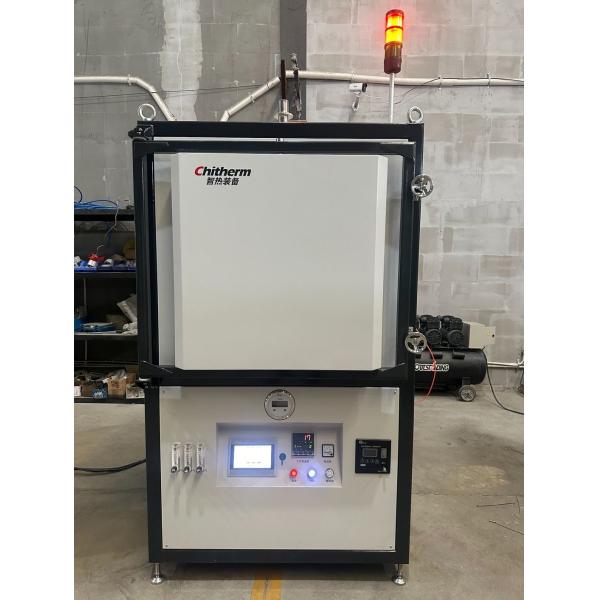

1100°C Maximum Temperature MBF22-11N Medium-Temperature Atmosphere Box Furnace Custom-Made for Non-Standard Requirements

Equipment Name and Model

MBF22-11N Medium-temperature Atmosphere Box Furnace

Technical Specifications and Basic Configuration

Rated Temperature: 1000°C
Maximum Temperature: 1100°C
Effective Size: 330mm×200mm×330mm (W×H×D)
Sagger Specification: 330mm×100mm×330mm (W×H×D), provided by the customer
Loading Method: Sagger supported by SiC roller rods in double-layer and longitudinal double-row arrangement
Heating Element: Silicon carbide rod inserted inside ceramic tube
Thermocouple Type: N Graduation
Temperature Control Points: 1 point
Temperature Control: Imported module with ±1°C accuracy and PID self-tuning
Furnace Temperature Uniformity: ±5°C (tested under specified conditions)
Sintering Atmosphere: Nitrogen/Air
Oxygen Content: Better than 10ppm + gas source oxygen content
Oxygen Detection: Micro oxygen analyzer for real-time monitoring
Pressure Detection: Digital differential pressure gauge
Exhaust Method: Top chimney with manual volume adjustment
Program Steps: 4×16 steps
Maximum Heating Power: 12kW
Heating Rate: ≤5°C/min
Furnace Body Surface Temperature Rise: ≤40°C
Alarm and Protection: Multiple safety features including interlock, over-temperature, and thermocouple breakage alarms
Reference Dimensions: 1300mm×1900mm×1160mm (W×H×D, excluding chimney)

Custom Gas Fired Atmosphere High Temperature Box Furnace For Steel Molding Heat Treatment

Delivery List

Item	Note	Qty.
Basic Components	Furnace	1 PC
Inspection Certificate	Certificate of major outsourced components	1 SET
Technical Documents	Instruction Manual, Random Technical Documents	1 SET
Key Components	Silicon Carbide Rod in Ceramic Tube	1 SET
Temperature Control Instrument	Shimaden (Japan)	1 PC
Oxygen Analyzer		1 PC
Spare Parts	Silicon Carbide Rod	2 PCS
