Vertical Box Inert Atmosphere Oven Nitrogen Furnace For Industrial

Name: Vertical Box Inert Atmosphere Oven Nitrogen Furnace For Industrial
Brand: Chitherm
Price: 1 USD

China Vertical Box Inert Atmosphere Oven Nitrogen Furnace For Industrial wholesale

Model Number : Hbf52-17o

Range of Applications : Industrial

Type : Electric Holding Furnace

Fuel : Electric

Atmosphere : Air

Effective Chamber Dimensions : 300*200*550mm(W*D*H)

Transport Package : Wooden Packaging

Specification : 1150*1970*1300mm(W*H*D)

Trademark : Chitherm

Origin : China

HS Code : 8514101000

Supply Ability : Customized

Customization : Available

Certification : ISO

Place Style : Vertical

Place of Origin : China

Brand Name : Chitherm

MOQ : 1

Price : Negotiable

Packaging Details : Customized

Delivery Time : Customized

Payment Terms : Customized

Contact Now

Vertical Box Inert Atmosphere Oven Nitrogen Furnace For Industrial Applications

Product Specifications

Attribute	Value
Range of Applications	Industrial
Type	Electric Holding Furnace
Fuel	Electric
Atmosphere	Air
Effective Chamber Dimensions	300200550mm (WDH)
Transport Package	Wooden Packaging
Specification	115019701300mm (WHD)
Trademark	Chitherm
Origin	China
HS Code	8514101000
Supply Ability	50 Sets/Year
Customization	Available
Certification	ISO
Place Style	Vertical

Product Description

The Vertical High Temperature Box Furnace Hbf52-17o is designed for a wide range of industrial applications including zirconia ceramics, alumina ceramics, ferrites, magnetic materials, electronic components, and ceramic filters in high temperature binder burn off and sintering processes.

Technical Specifications

Rated Temperature: 1650ºC
Maximum Temperature: 1700ºC
Effective Dimensions: 350 × 300 × 500mm (W×H×D)
Heating Method: U-shaped MoSi2 Heating Elements
Process Atmosphere: Air/Oxygen
Temperature Control Stability: ±1ºC, with PID parameter self-tuning function
Temperature Uniformity: better than ±5ºC (insulation 2 hours at 1650ºC test)
Thermocouple: B Type
Temperature Control Points: 1
Temperature Measurement Points: 1 point
Number of Temperature Profiles: 4×16 steps
Exhaust: One exhaust port with auto cover
Alarm System: Over temperature, thermocouple failure and other abnormal conditions will activate sound and light alarm protection
Maximum Heating Power: 25kW
Insulation Power: ≤ 10kW
Heating Speed: RT~1200ºC≤5ºC/min, 1200~1700ºC≤2ºC/min
Surface Temperature Rise: ≤ 35ºC
Weight: about 900kg
Furnace Dimensions: about 1620×1960×1220mm (W×H×D)
Appearance Color: light gray

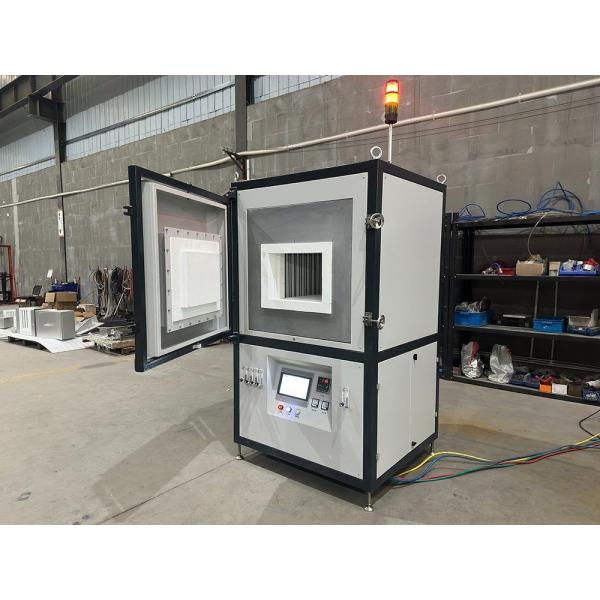

Vertical Box Inert Atmosphere Oven Nitrogen Furnace For Industrial

Delivery List

Item	Note	QTY
Basic Compositions	Furnace	1 PC
Certificates of Inspection	Furnace and major purchased components	1 Set
Technical Documents	Furnace specifications, technical documents of major purchased components, etc	1 Set
Key Parts	Heating Elements (MoSi2)	1 Set
	Thermocouple (THERMOWAY, B Type)	1 PC
	Temperature Controller (Azbil/CHINO)	1 Set
	Monitor (Proface touch screen)	1 Set
Spares	Heating Elements (MoSi2)	1 PC

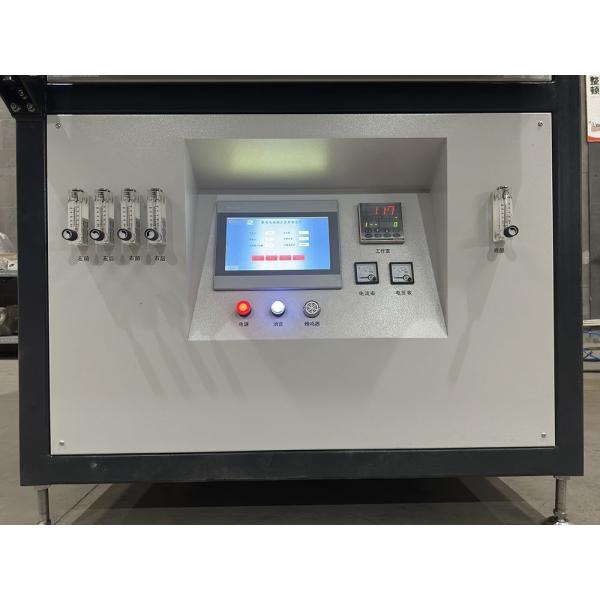

Product Images
