1700c Atmosphere Box Furnace Tempering Oven For Steel Ceramic Sintering

Name: 1700c Atmosphere Box Furnace Tempering Oven For Steel Ceramic Sintering
Brand: Chitherm
Price: 1 USD

China 1700c Atmosphere Box Furnace Tempering Oven For Steel Ceramic Sintering wholesale

Model Number : HBF52-17O

Place of Origin : China

Brand Name : Chitherm

MOQ : 1

Price : Negotiable

Packaging Details : Customized

Delivery Time : Customized

Payment Terms : Customized

Supply Ability : Customized

Model NO. : HBF52-17O

Range of Applications : Industrial

Type : Electric Holding Furnace

Usage : Ceramic Sintering

Fuel : Electric

Atmosphere : Air/Oxygen

Effective Chamber Dimensions : 350*300*500mm(W*H*D)

Transport Package : Wooden Packaging

Specification : 1620*1960*1220mm(W*H*D)

Trademark : Chitherm

Origin : China

HS Code : 8514101000

Production Capacity : 50 Sets/Year

Contact Now

1700c Atmosphere Box Furnace Tempering Oven For Steel Ceramic Sintering

Product Specifications

Attribute	Value
Model NO.	HBF52-17O
Range of Applications	Industrial
Type	Electric Holding Furnace
Usage	Ceramic Sintering
Fuel	Electric
Atmosphere	Air/Oxygen
Effective Chamber Dimensions	350300500mm(WHD)
Transport Package	Wooden Packaging
Specification	162019601220mm(WHD)
Trademark	Chitherm
Origin	China
HS Code	8514101000
Production Capacity	50 Sets/Year

Industrial Ceramic Sintering Solution

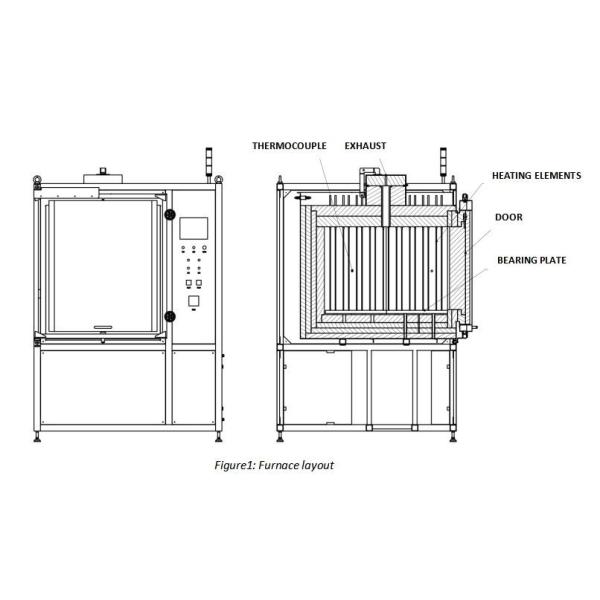

The Chitherm HBF52-17O 1700c Box-Type Furnace provides optimal performance for high-temperature ceramic sintering in industrial environments.

Primary Applications

Zirconia ceramics sintering
Alumina ceramics processing
Ferrites and magnetic materials production
Electronic components manufacturing
Ceramic filters high-temperature binder burn-off

Technical Specifications

Rated Temperature: 1650ºC

Maximum Temperature: 1700ºC

Effective Dimensions: 350 × 300 × 500mm (W×H×D)

Heating Method: U-shaped MoSi2 Heating Elements

Process Atmosphere: Air/Oxygen

Temperature Control Stability: ±1ºC with PID parameter self-tuning

Temperature Uniformity: Better than ±5ºC (insulation 2 hours at 1650ºC test)

Thermocouple: B Type

Max Heating Power: 25kW

Insulation Power: ≤ 10kW

Heating Speed: RT~1200ºC≤5ºC/min, 1200~1700ºC≤2ºC/min

Surface Temperature Rise: ≤ 35ºC

Weight: About 900kg

Furnace Dimensions: About 1620×1960×1220mm (W×H×D)

Appearance Color: Light gray

1700c Atmosphere Box Furnace Tempering Oven For Steel Ceramic Sintering

Standard Delivery Contents

Item	Note	Quantity
Basic Compositions	Furnace	1 PC
Certificates of Inspection	Furnace and major purchased components	1 Set
Technical Documents	Furnace specifications, technical documents of major purchased components	1 Set
Key Parts - Heating Elements	MoSi2	1 Set
Key Parts - Thermocouple	THERMOWAY, B Type	1 PC
Key Parts - Temperature Controller	Azbil/CHINO	1 Set
Key Parts - Monitor	Proface touch screen	1 Set
Spares - Heating Elements	MoSi2	1 PC

Facility Requirements

Environmental conditions: Temperature 0 - 40ºC, humidity ≤ 80% RH, no corrosive gas, no strong airflow disturbance
Process air conditions: Clean, dry, oil-free compressed air, pressure 0.2 - 0.4Mpa, gas consumption 2-6m³/h
Ventilation system: Non-contact access to user pumping system with capacity >10m³/h
Ground requirements: Level surface, no significant vibration, bearing capacity >300Kg/m²
Power conditions: Capacity >34kVA, 3 phases 5 lines, voltage 220/380V, frequency 50Hz
Installation site: Minimum 2000mm×3000mm×1500mm (W×H×D), area >3m²
